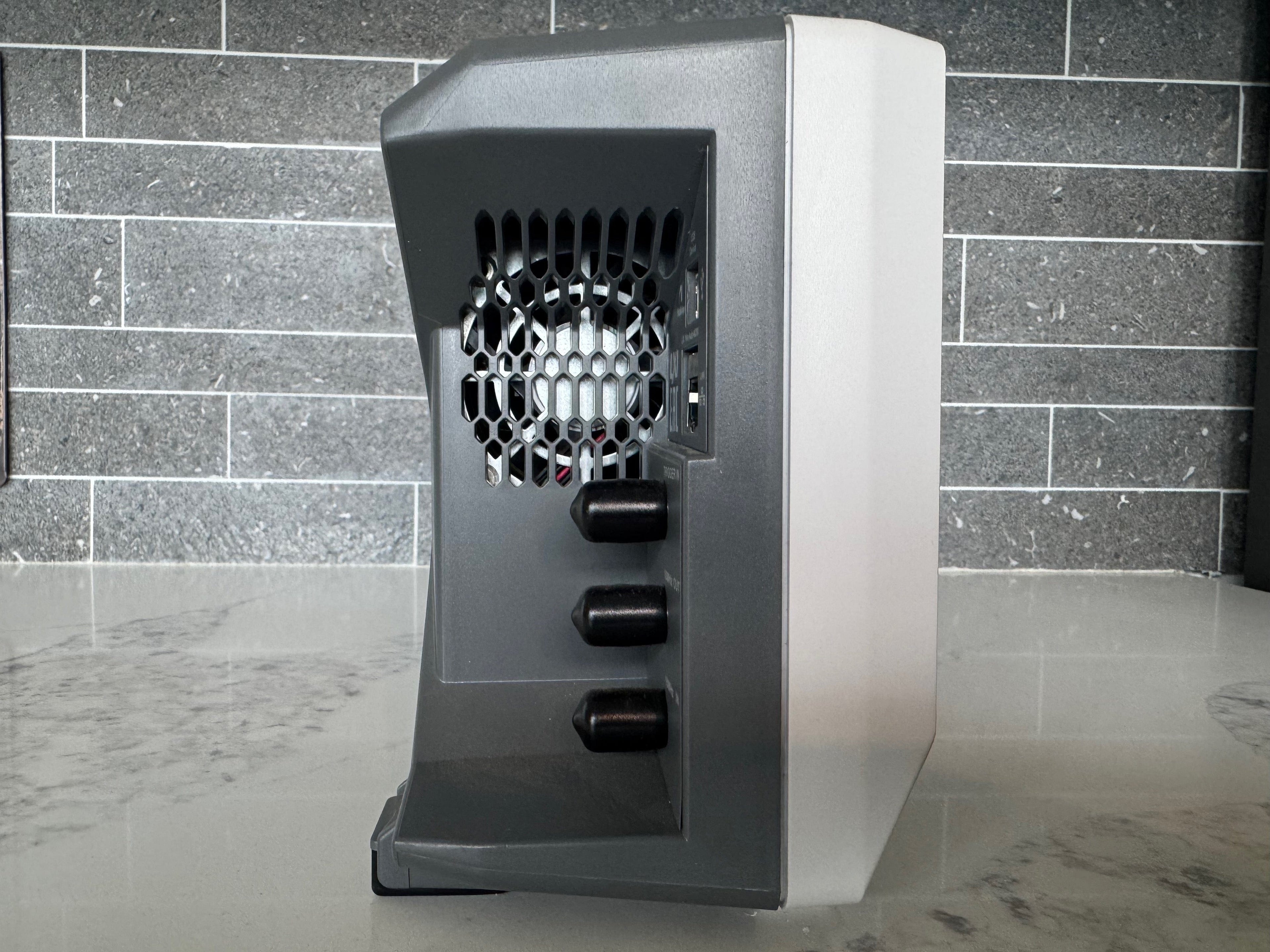

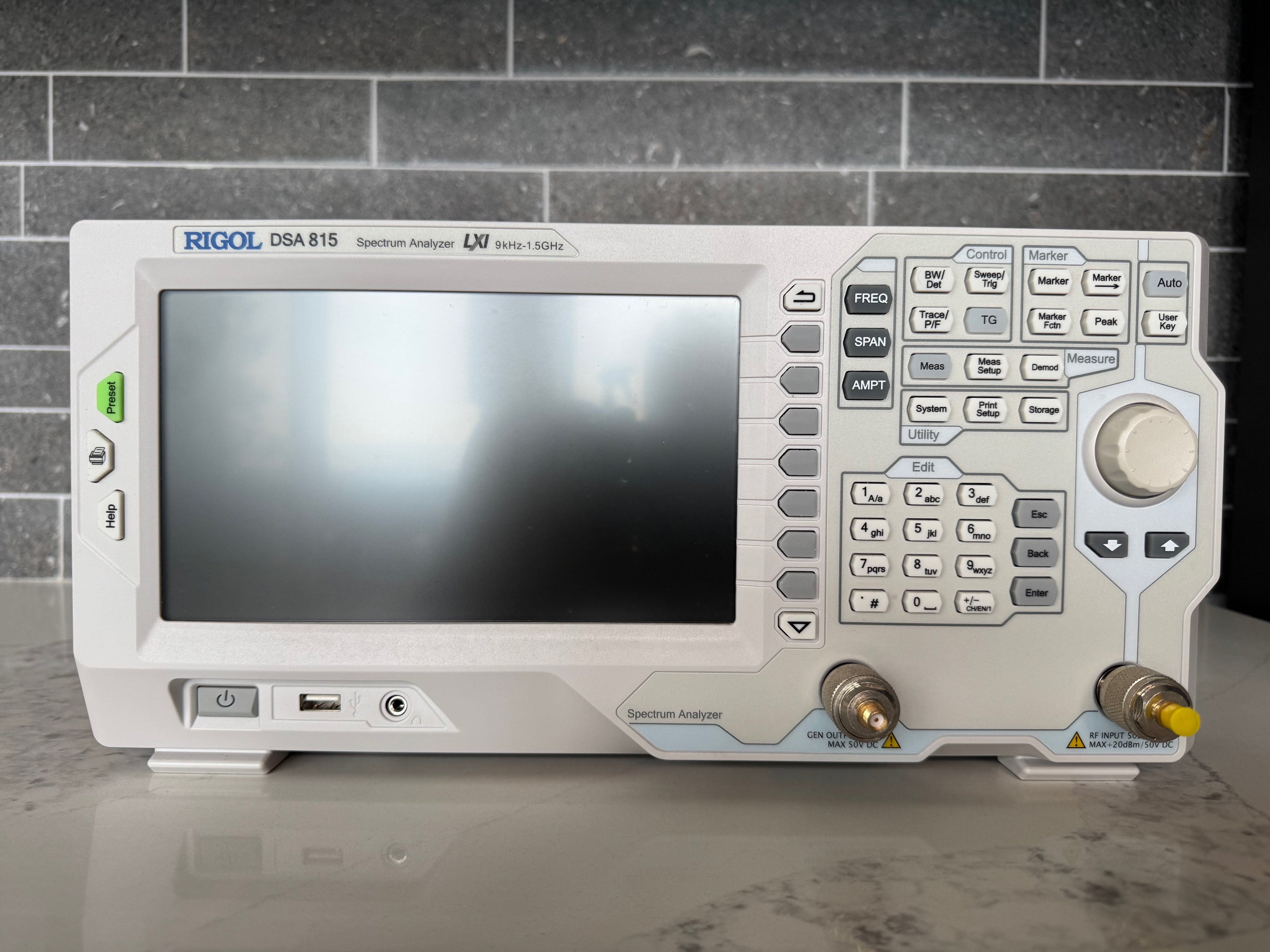

Rigol DSA815 Spectrum Analyzer

The Rigol DSA815 is a compact and light Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

What's included with the Rigol DSA815 Spectrum Analyzer

This version is the base unit and does not include the tracking generator. The TG version includes the generator.

This product listing contains the DSA815 unit only with LPDA and Near Field Probe Set.

What the Rigol DS815 Spectrum Analyzer is used for:

RIGOL's Spectrum Analyzers combine performance and value for engineers in design, debugging, spectrum monitoring, and EMI applications. The DSA800 series are perfect for general purpose RF engineering and EMC work. They provide range up to 7.5 GHz in a reliable and cost effective platform.

Key features of the Rigol DS815

The very large display (20.3 cm / 8") of the Rigol DSA815 Spectrum Analyzer with a resolution of 800x480pixels provides a very good overview over all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, instead of the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface and offers multiple functions for all tasks. The menu navigation is very intuitive in use and all functions and parameters are easy to reach because of the graphical interface.

1. The ability to measure smaller signals: on the basis of this technology, the IF filter enables smaller bandwidth settings, which greatly reduce the displayed average noise level.
2. The ability to distinguish between small signals by frequency: using the IF filter with the smallest bandwidth setting it is possible to make out signals with a frequency difference of only 10 Hz.
3. High precision amplitude readings: this technology almost eliminates the errors generated by filter switching, reference level uncertainty, scale distortion, as well as errors produced in the process of switching between logarithmic and linear display of amplitude when using a traditional analog IF design.
4. Higher reliability: compared with traditional analog designs, the digital IF greatly reduces the complexity of the hardware, the system instability caused by channel aging, and the temperature sensitivity that can contribute to parts failure.
5. High measurement speed: the use of digital IF technology improves the bandwidth precision and selectivity of the filter, minimizing the scanning time and improving the speed of the measurement.
